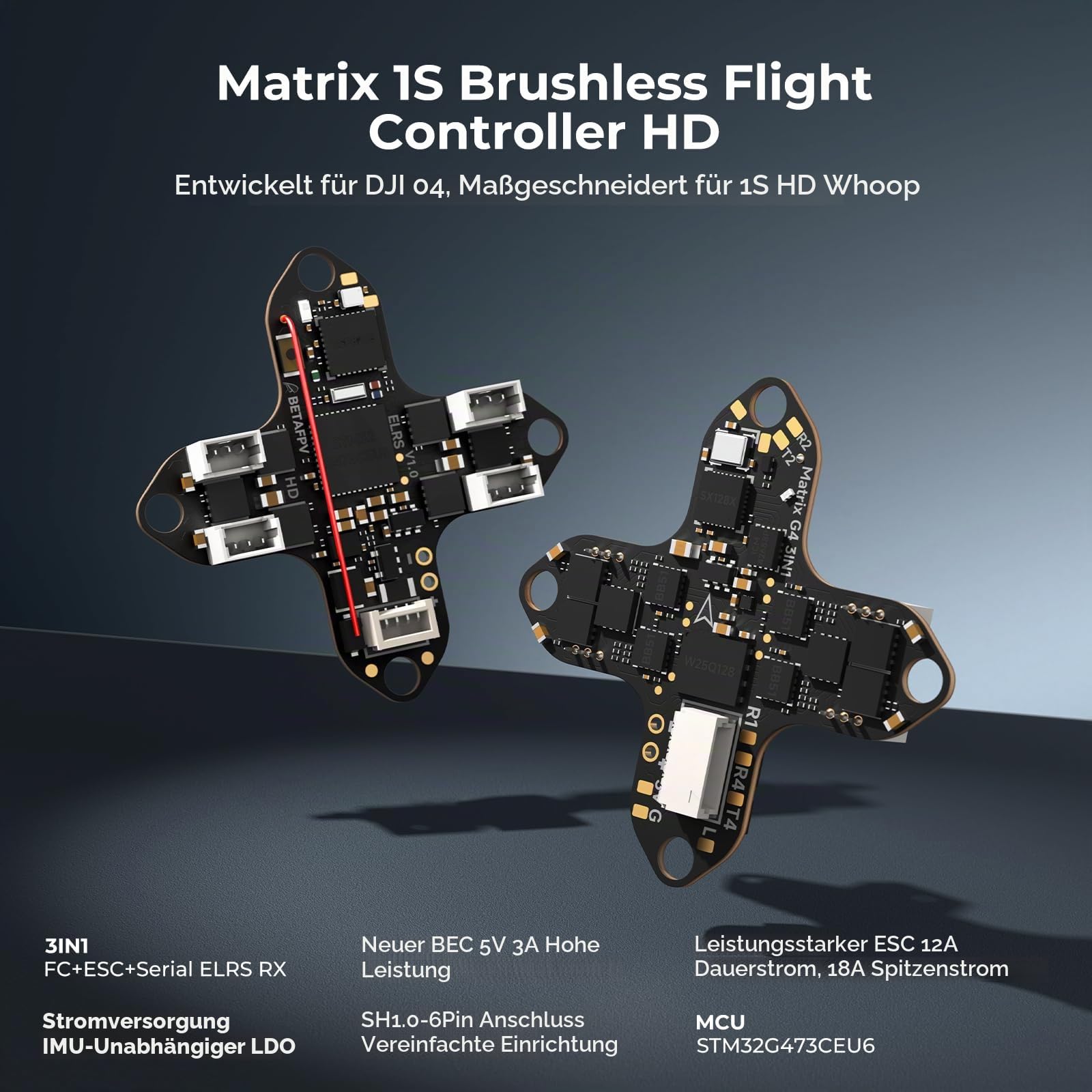

BETAFPV Matrix 1S Brushless Flight Controller G4 3IN1 HD BMI270 - ELRS | Built-in Serial ELRS RX, 5V 3A BEC, 12A ESC, 16MB Blackbox, SH1.0-6Pin Connector for O4 Air Unit, DIY 1S HD Whoop like Meteor

Marke: BETAFPV
Modellname: Matrix 1S G4 3IN1 HD
Besonderes Merkmal: Neue BEC für stabile HD-Bildübertragung, verbesserter kontinuierlicher 12A ESC, einzelner Netzteil für IMU, mühelose Einrichtung und Wartung, externes GerätMehr anzeigen
Altersgruppe (Beschreibung): Jugendliche, Erwachsene
Farbe: schwarz

- New BEC Stable HD Image Transmission: Digital image transmission requires higher current, and 1S whoops often fly at voltages as low as 3.3V, placing significant demands on the BEC. To meet these challenges, an advanced BEC has been developed, capable of delivering over 3A of current at ultra-low voltages down to 2.85V ensuring stable digital image transmission even in critical situations
- Enhanced Continuous 12A ESC: HD image transmission adds weight to 1S whoops, demanding stronger power and higher ESC overcurrent capacity. Our engineers exceeded expectations, delivering a robust ESC with 12A continuous output and 18A peak capacity on the iconic "cross" flight controller. This ensures optimal thrust-to-weight ratio, reliable performance, and worry-free high-definition flights
- Individual Power Supply for IMU: Unlike traditional shared power supply designs, the Matrix 1S 3IN1 HD FC features an independent 3.3V LDO power supply exclusively for the IMU. This innovation eliminates interference, creating a cleaner and more stable environment that enhances flight precision, improves sensitivity, and reduces the risk of performance issues—ensuring unmatched stability during every flight
- Effortless Setup and Maintenance: The Matrix 1S 3IN1 HD FC is designed to maximize your flight time by minimizing setup hassle. Equipped with convenient motor plugs and a SH1.0-6Pin HD digital port, it allows for a completely solder-free installation and maintenance process. Pilots can focus more on enjoying high-definition flight experiences instead of dealing with complex tools

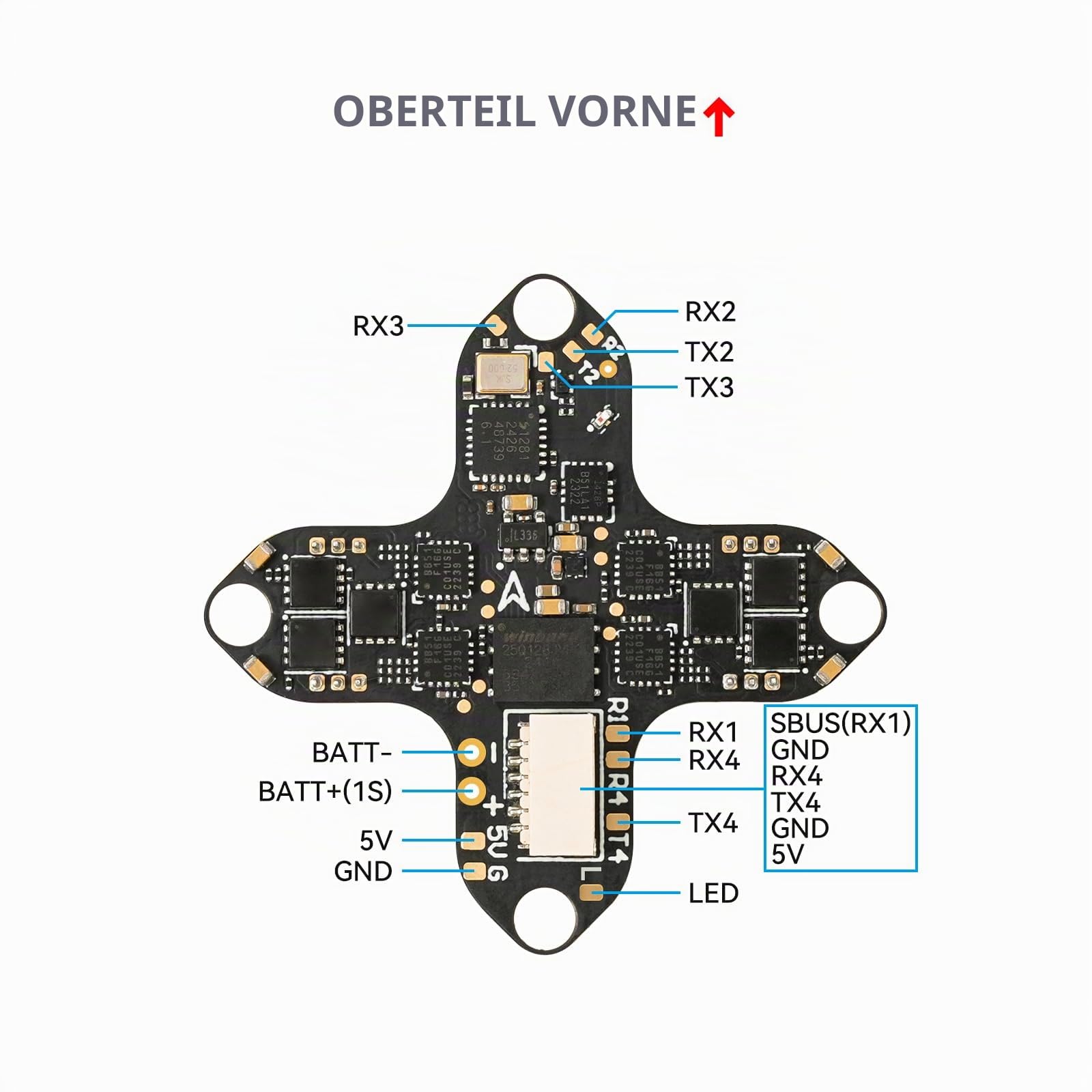

- External Device: This Matirx 1S 3IN1 HD Flight Controller not only includes a SH1.0-6Pin connector for DJI O4 Air Unit which is easy to install without soldering, but also reserves 2 complete full-featured serial ports that can be used for external serial receivers, GPS, HD VTX or other serial devices
